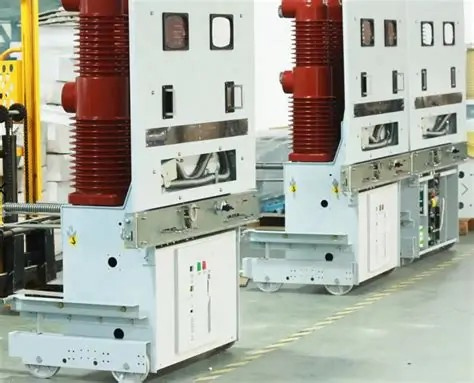

The evolution of vacuum circuit breaker technology has led to significant advances in insulation systems, and the ZN85-40.5 Indoor High Voltage Vacuum Circuit Breaker incorporates state-of-the-art solid insulated pole technology that dramatically enhances its environmental adaptability and long-term reliability . This innovative design represents a departure from traditional air-insulated or wrapped insulation approaches.
In the ZN85-40.5, the vacuum interrupter along with its upper and lower terminations is completely encapsulated in outdoor-grade epoxy resin using an automatic pressure gelation process . This fully sealed pole assembly eliminates internal voids and prevents moisture ingress, which are primary causes of insulation degradation and partial discharge in conventional designs. The solid insulation structure provides uniform electric field distribution, reducing stress concentrations and improving dielectric performance .
The environmental benefits of this design are substantial. The solid insulated poles are inherently resistant to humidity, pollution, and altitude effects, making the breaker suitable for installation in challenging environments where standard insulation might be compromised . For applications in coastal areas, industrial zones, or regions with high atmospheric pollution, the sealed pole construction ensures consistent dielectric strength without the need for periodic cleaning or maintenance.
The solid insulation also contributes to the breaker's compact dimensions and reduced weight. By eliminating the need for large air gaps for insulation coordination, the phase spacing is reduced to just 300mm, and the overall breaker depth is minimized . This space-saving design allows for more compact switchgear layouts, reducing substation footprint and construction costs. The mechanical integrity of the solid poles also provides excellent resistance to vibration and shock during transportation and operation.
Furthermore, the encapsulation protects the vacuum interrupter and connections from corrosion and contamination, preserving the low and stable contact resistance throughout the breaker's service life. The solid pole design is fully compatible with the ZN85-40.5's 10,000-operation mechanical life and E2 class electrical endurance . This combination of robust construction and high performance ensures decades of reliable service in demanding applications.
Therefore, for projects requiring enhanced environmental resilience, the ZN85-40.5 with solid insulated pole design offers a superior solution. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. To discuss your specific environmental requirements, contact our technical specialists.
(Article content references network resources.)
