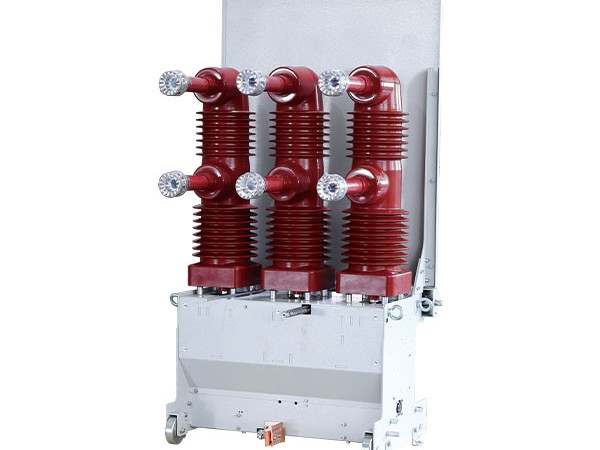

The safe operation of medium-voltage switchgear depends critically on the mechanical integrity of its interlocking systems. The ZN85-40.5 Indoor High Voltage Vacuum Circuit Breaker features a precision-engineered handcart propulsion mechanism and a comprehensive "five-prevention" interlocking system that ensures operator safety and prevents misoperation under all conditions .
The handcart propulsion system employs a robust screw-nut mechanism with an integrated overrunning clutch . When the operating handle is inserted into the propulsion access port and turned, the screw drives the handcart smoothly along the cabinet's guide rails. The mechanism requires minimal effort and provides precise control over handcart position. Upon reaching either the fully "test" or fully "working" position, the overrunning clutch engages, producing an audible "click" and preventing further movement . This positive stop ensures accurate alignment of primary and secondary disconnecting contacts every time.
The ZN85-40.5's "five-prevention" interlocking features are designed to prevent the five most common operator errors :
1.Prevention of closing when the handcart is between positions: The interlock prevents breaker closure unless the handcart is fully docked in either the test or working position .
2.Prevention of handcart movement when the breaker is closed: Mechanical interlocks physically block the propulsion mechanism if the breaker is in the closed position, preventing withdrawal or insertion under load .
3.Prevention of grounding switch operation with the breaker in working position: The interlock ensures the grounding switch cannot be closed when the main breaker is connected to the live bus .
4.Prevention of breaker closure with the grounding switch closed: The interlock blocks breaker closing if the associated grounding switch is in the closed position .
5.Prevention of access to live compartments: The cabinet's door interlocks ensure that compartments containing live parts cannot be opened unless the circuit is properly isolated and grounded.
The interlocking system is entirely mechanical and key-operated, ensuring fail-safe operation without reliance on electrical circuits that could fail or be bypassed . All interlock mechanisms are robustly constructed and tested for thousands of operations, matching the breaker's 10,000-operation mechanical life . Visual indicators on the front of the breaker clearly show the handcart position and breaker status, providing operators with unambiguous information.
Therefore, the ZN85-40.5's advanced handcart mechanism and comprehensive interlocking system provide the foundation for safe, reliable, and intuitive operation in any medium-voltage application. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For a detailed demonstration of these safety features, contact our engineering team.
(Article content references network resources.)
