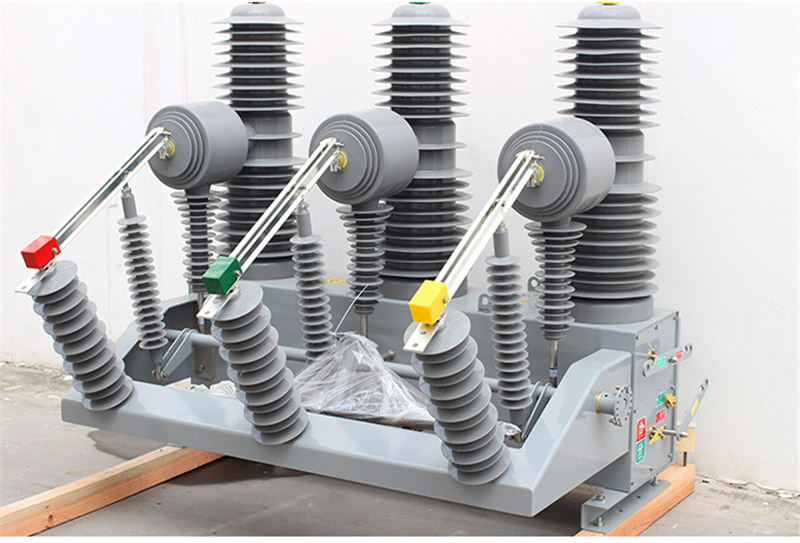

Traditional 35kV class outdoor circuit breakers have historically suffered from a significant drawback: excessive size and weight that complicate installation and increase project costs. The ZW32-40.5kV Outdoor Pole Mounted Vacuum Auto Recloser breaks this paradigm through its innovative lightweight, compact design, reducing weight by up to two-thirds compared to conventional products while maintaining full performance specifications .
This dramatic weight reduction is achieved through multiple engineering innovations. The use of solid insulation technology eliminates the need for bulky air gaps or SF6 gas chambers, allowing for a more compact three-phase pillar structure . The integrated design combines the vacuum interrupter, current sensors, and operating mechanism within a unified housing, reducing redundant structural elements. The controller, weighing only 25kg, is separate but designed for easy pole mounting alongside the main unit .
The installation benefits are substantial. With its reduced weight and compact footprint, the ZW32-40.5 can be installed on a single pole using standard lifting equipment, eliminating the need for cranes or special rigging often required for heavier conventional breakers . This significantly reduces installation time and cost, particularly in remote or difficult-to-access locations. The modular design allows the main breaker and controller to be installed separately, with simple plug-and-play connections via aviation connectors .
The design also simplifies transportation logistics. The lightweight construction means multiple units can be shipped together, reducing freight costs. For international projects, the compact dimensions facilitate containerized shipping, avoiding the premium rates charged for oversized cargo. The rugged construction ensures units arrive on-site in perfect condition, ready for immediate installation .
Maintenance access is equally streamlined. The three-phase pillar design provides clear visibility and access to all critical components . The permanent magnet mechanism requires no periodic lubrication or adjustment, while the solid insulated poles eliminate the need for insulation testing or cleaning . When component replacement is eventually necessary, the modular construction allows for quick exchange without specialized tools or extensive downtime.
Therefore, for utilities and contractors seeking to minimize project costs and installation complexity, the ZW32-40.5's lightweight design offers compelling advantages. It delivers full 40.5kV protection capabilities in a package that is practical to handle, install, and maintain. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. To discuss how the ZW32-40.5's compact design can benefit your next project, contact our engineering team for a consultation.
(Article content references network resources.)
