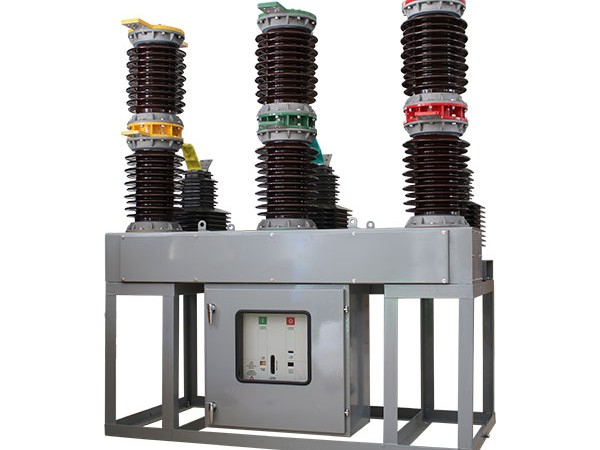

Traditional outdoor circuit breaker installations require separate current transformers mounted externally, adding complexity, cost, and potential failure points. The ZW7-40.5/35kV Outdoor High Voltage Vacuum Circuit Breaker offers an integrated solution with built-in current transformers that simplify system architecture while enhancing measurement accuracy and protection coordination .
The ZW7-40.5 can be configured with integrated CTs that eliminate the need for separate CT mounting structures and interconnecting wiring. These built-in CTs are available in configurations suitable for metering applications with accuracy up to Class 0.2, ensuring precise revenue-grade measurement . For protection applications, the CTs support three-phase differential protection schemes, enabling fast and selective fault detection critical for transformer and feeder protection.
The integration of CTs within the breaker's compact structure offers significant installation advantages. It eliminates the additional space required for separate CT compartments or mounting frames, reducing the overall footprint of the substation . The pre-wired CT connections reduce field installation time and eliminate potential wiring errors that could compromise measurement accuracy or protection performance . All CT secondary circuits are fully enclosed within the breaker's control compartment, protected from environmental exposure.
Reliability is enhanced by eliminating external CT connections, which are common failure points in traditional installations. The CTs are fully sealed within the breaker's insulation system, protected from moisture, contamination, and mechanical damage . This integrated design also simplifies maintenance, as there are no separate CT components requiring periodic inspection or testing. The CT's characteristics are factory-calibrated and verified during breaker testing, ensuring consistent performance throughout the equipment's life.
Therefore, for applications requiring accurate measurement and reliable protection—such as utility substations, industrial power distribution, and renewable energy grid connection—the ZW7-40.5's integrated CT design offers a streamlined, reliable alternative to traditional separate CT installations. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For assistance in selecting the optimal CT configuration for your application, contact our engineering specialists.
(Article content references network resources.)
