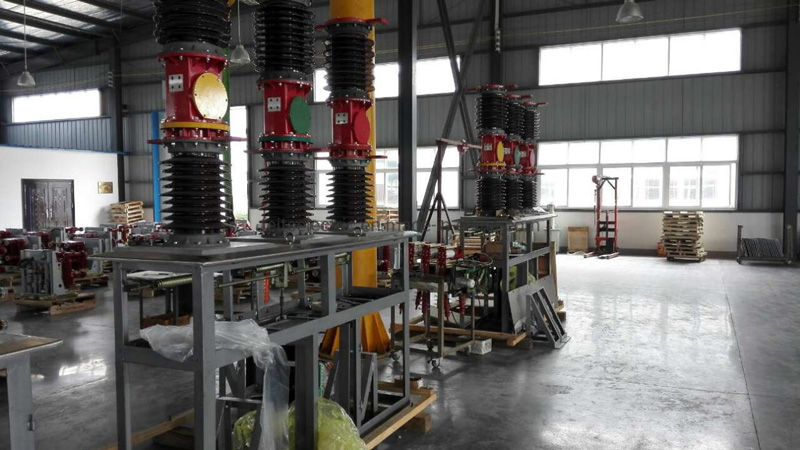

The core of any vacuum circuit breaker's performance lies in its vacuum interrupter, and the ZW7-40.5/35kV Outdoor High Voltage Vacuum Circuit Breaker utilizes advanced interrupter technology that delivers exceptional electrical endurance and mechanical durability for the most demanding outdoor applications. This technology ensures reliable protection for decades with minimal maintenance requirements.
The ZW7-40.5's vacuum interrupters employ copper-chromium contact materials, which provide the optimal combination of high conductivity, arc resistance, and anti-welding properties required for 40.5kV applications . The vacuum environment itself is the ideal arc extinction medium, offering superior dielectric recovery after current zero with no deterioration over time. This technology enables the breaker to achieve a rated short-circuit breaking current of 31.5kA, handling the most severe fault conditions with consistent performance.
The durability of the vacuum interrupter is demonstrated by its electrical endurance ratings. The breaker is capable of 12 rated short-circuit current interruptions—meaning it can clear full-scale faults a dozen times without performance degradation . For normal load switching, the electrical life is essentially unlimited, as vacuum interrupters experience negligible contact erosion during routine operations. This longevity is critical for applications where frequent switching is required, such as capacitor bank or transformer switching duties.
Mechanical robustness is equally impressive, with a mechanical life of 10,000 operations verified through rigorous testing. The spring operating mechanism is designed to maintain consistent operating characteristics throughout this life, with opening times ≤60ms and closing times ≤150ms . The mechanism's output characteristics are precisely matched to the vacuum interrupter's travel requirements, ensuring optimal contact loading and minimizing stress on components. The closing bounce time ≤2ms further reduces contact wear, extending electrical life.
Therefore, the ZW7-40.5's vacuum interrupter technology delivers the long-term reliability and high-performance characteristics required for critical outdoor distribution applications. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. To discuss how this advanced interrupter technology can meet your specific operational requirements, contact our technical experts.
(Article content references network resources.)
