Proper installation, commissioning, and maintenance are essential to realize the full potential of the ZW7-40.5/35kV Outdoor High Voltage Vacuum Circuit Breaker. Following established procedures ensures long-term reliability, safety, and optimal performance in outdoor distribution applications. This guide provides best practices for field personnel responsible for breaker acceptance, installation, and ongoing care.
Upon receipt, inspect the breaker for any transit damage. Verify that the porcelain or composite insulators are free from cracks or chips. Check the operating mechanism housing for any signs of impact damage. Before installation, review the nameplate data to confirm the rated current, voltage, and short-circuit ratings match the project specifications. Ensure the condensation controller is properly configured for local climate conditions.

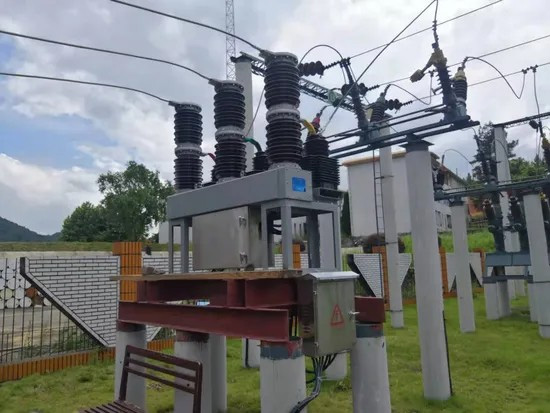

During installation, follow proper lifting procedures using the designated lifting lugs to avoid stress on insulators or the operating mechanism. For pole-mounted applications, ensure the mounting structure is level and adequately braced to withstand wind loads and operating forces . For substation installations, verify that the foundation meets specified load requirements. Connect the primary conductors using the appropriate hardware, ensuring contact surfaces are clean and torqued to manufacturer specifications—typically 200-250 N·m for M16 bolts .
Before commissioning, perform the following verification steps:
1.Conduct manual opening and closing operations at least five times to verify smooth mechanism function.
2.Apply control voltage and verify electrical operation in both open and close directions.
3.Measure insulation resistance of the main circuit using a 2500V megger.
4.Perform power frequency withstand tests as specified in the installation manual.
5.Verify CT secondary connections if built-in CTs are included.
Routine maintenance should be scheduled based on operating conditions. While the breaker is designed for minimum maintenance, periodic inspections are recommended every 3-5 years or after severe fault interruptions . Check for signs of corrosion, loose hardware, or insulator contamination. Verify the condensation controller operation and clean or replace filters as needed. The vacuum interrupters are sealed for life and require no internal maintenance; however, a power frequency withstand test can verify vacuum integrity .
Therefore, following these best practices will maximize the ZW7-40.5's reliability and service life in outdoor applications. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For technical support or training on ZW7-40.5 installation and maintenance, contact our service team.
(Article content references network resources.)
