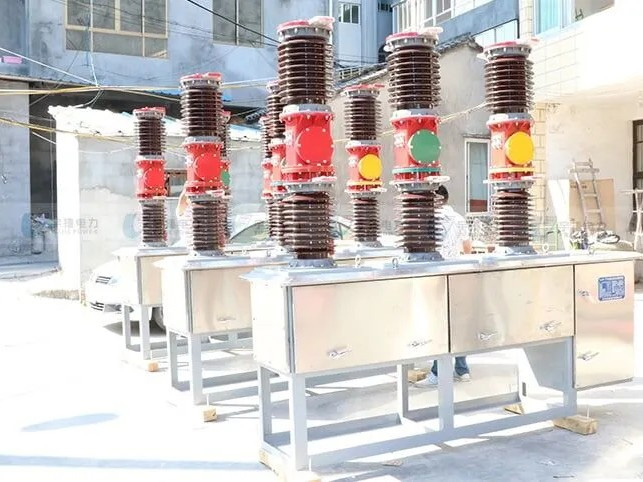

Outdoor high-voltage equipment installed in challenging environments must withstand extreme conditions that would compromise standard designs. The ZW7-40.5/35kV Outdoor High Voltage Vacuum Circuit Breaker is specifically engineered for these demanding applications, with a design that addresses the unique challenges of high altitude, heavy pollution, and severe weather conditions .
The breaker's insulation system is optimized for high-altitude operation, where reduced air density decreases dielectric strength. It maintains full performance up to 1000m standard altitude, with derating guidelines available for installations up to 3000m . The epoxy resin insulators feature extended creepage distances specifically designed for Pollution Class IV environments—the highest classification for industrial and coastal areas with heavy conductive contamination .
For extreme temperature environments, the ZW7-40.5 is designed to operate reliably from -40°C to +40°C, with a special cold-region version available for applications requiring performance at -40°C . The integrated condensation controller actively manages internal humidity, preventing moisture accumulation that could lead to insulation degradation. This feature is critical for installations experiencing wide daily temperature variations (up to 25°C) where condensation risk is highest .
The outdoor structure is built for long-term exposure to the elements. The stainless steel or hot-dip galvanized steel framework provides exceptional corrosion resistance, while the sealed operating mechanism housing prevents ingress of dust, moisture, and corrosive gases . With IP54 protection for control components and sealed vacuum interrupters that eliminate contamination risks, the breaker maintains its dielectric integrity regardless of external conditions.
Therefore, for projects in high-altitude regions, coastal areas, or heavily industrialized zones, the ZW7-40.5 offers a proven, durable solution engineered to deliver reliable protection regardless of environmental challenges. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For a detailed assessment of your site-specific environmental conditions, contact our technical team.
(Article content references network resources.)
