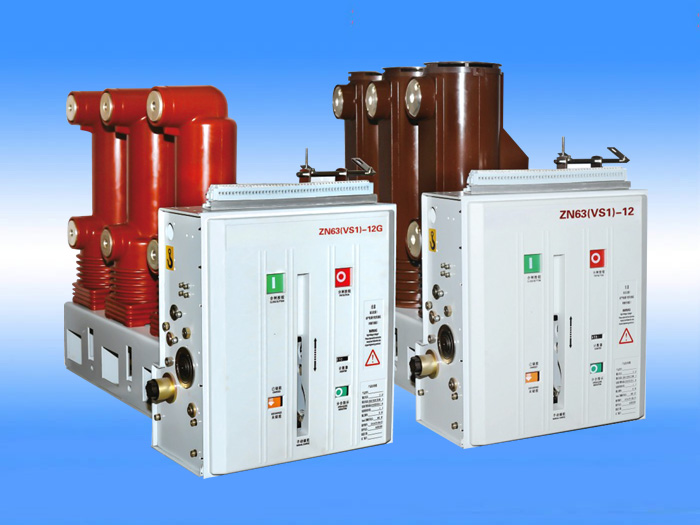

Proper installation, commissioning, and maintenance are essential to ensure the long-term reliability and safety of the ZN63(VS1)-12 Indoor High Voltage Side-Mounted Vacuum Circuit Breaker. Following established procedures for this fixed-type breaker maximizes service life and minimizes operational risks in medium-voltage distribution systems .
Upon receipt, carefully inspect the breaker for any transit damage. Verify that all mounting bolts and electrical connections are securely tightened to specified torque values. Before installation, clean the epoxy resin insulators with a dry lint-free cloth to remove any dust or contaminants accumulated during shipping. Ensure the operating mechanism is in the open position and the closing spring is discharged before handling .
During installation into fixed switchgear, ensure the mounting surface is level and rigid. Align the breaker's mounting holes with the cabinet's support structure and secure using appropriately sized bolts . Connect the primary circuit conductors, ensuring the contact surfaces are clean and coated with conductive grease to prevent oxidation . Torque all primary connections to values specified in the product manual—typically 70-80 N·m for M12 bolts—to prevent overheating under load .
Before commissioning, perform the following verification steps :
1.Conduct manual opening and closing operations at least five times to verify smooth mechanism function
2.Check secondary control circuit connections and apply control voltage to verify electrical operation
3.Measure insulation resistance of the main circuit using a 2500V megger; values should exceed 100MΩ
4.Perform a power frequency withstand test at 42kV for one minute to verify insulation integrity
5.Verify contact resistance using a micro-ohmmeter; values should comply with specified limits
Routine maintenance should be scheduled based on operating conditions and duty cycle. While the breaker is designed for minimal maintenance, periodic inspections are recommended every 3-5 years or after severe fault interruptions . Check for any signs of overheating, corrosion, or mechanical wear. Verify that all visible fasteners remain tight. The vacuum interrupters are sealed for life and require no internal maintenance; however, a power frequency withstand test can be performed to verify vacuum integrity .
Therefore, following these best practices for installation, commissioning, and maintenance will ensure the ZN63(VS1)-12 delivers its full rated performance and service life. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For technical support or training on ZN63(VS1)-12 installation and maintenance, contact our service team.
