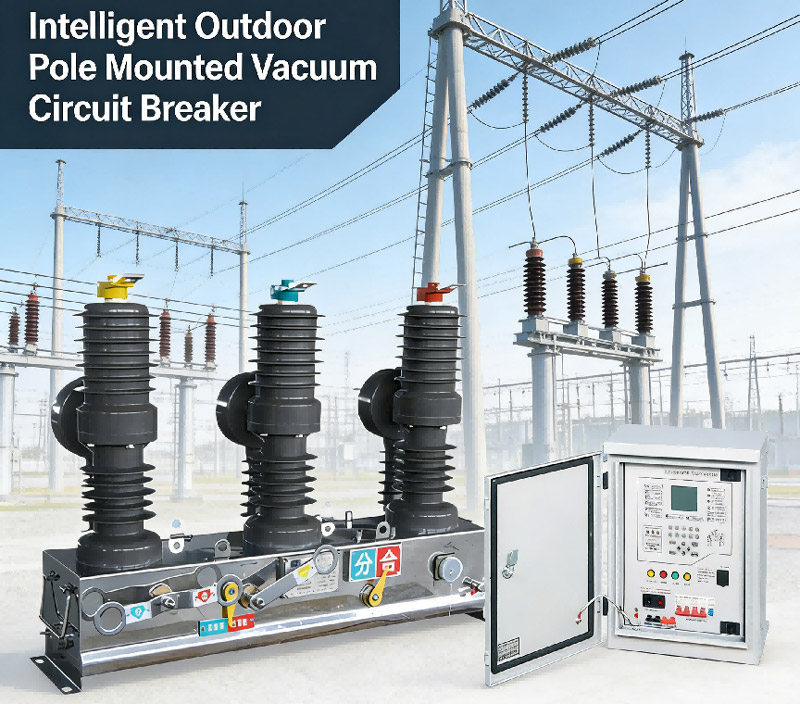

User Guide for ZW32-12kV Intelligent Outdoor Pole Mounted Vacuum Circuit Breaker

12 15, 2025

Posted By: Peter

The ZW32-12kV Intelligent Outdoor Pole Mounted Vacuum Circuit Breaker is a three-phase, 50Hz/60Hz primary switching device designed for the reliable control and protection of 12kV distribution networks. As a cornerstone of modern outdoor power systems, it integrates advanced Vacuum Interruption technology with intelligent control, ensuring safety and efficiency in substations, industrial facilities, and automated grids.

Its core operational reliability stems from its high-performance vacuum interrupter. Utilizing a ceramic envelope and copper-chromium contacts, it achieves rapid and effective arc extinction during current breaking. This, combined with a silicone-sealed arc chamber and robust outer insulation (epoxy resin or silicone rubber), ensures long-term, maintenance-free operation even in harsh environments up to pollution level IV. A key feature is its flexibility in compatible with permanent magnet or spring operating mechanisms, both offering a mechanical life exceeding 10,000 operations to suit different operational preferences.

This device enables true Smart Operation. Equipped with an intelligent controller, external CTs, and an anti-inrush composite controller, it supports remote control, automated reclosing, fault detection, and sectionaliing functions. This makes it ideal for achieving grid automation. The three-phase separated column structure enhances safety by preventing phase-to-phase faults.

For optimal performance, correct handling is crucial. Installation requires careful lifting using designated rings, a level base, and avoidance of stress on insulating sleeves. Commissioning must include standard dielectric withstand voltage tests. Routine maintenance every five years should check insulation, mechanism wear, and fasteners. A critical safety reminder: Always disconnect power before any maintenance and be cautious of stored energy in spring mechanisms.

Putai supplies the fully certified ZW32-12kV Intelligent Outdoor Pole Mounted Vacuum Circuit Breaker, backed by comprehensive technical support. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For professional guidance on deploying this intelligent solution in your network, contact our engineering team.
