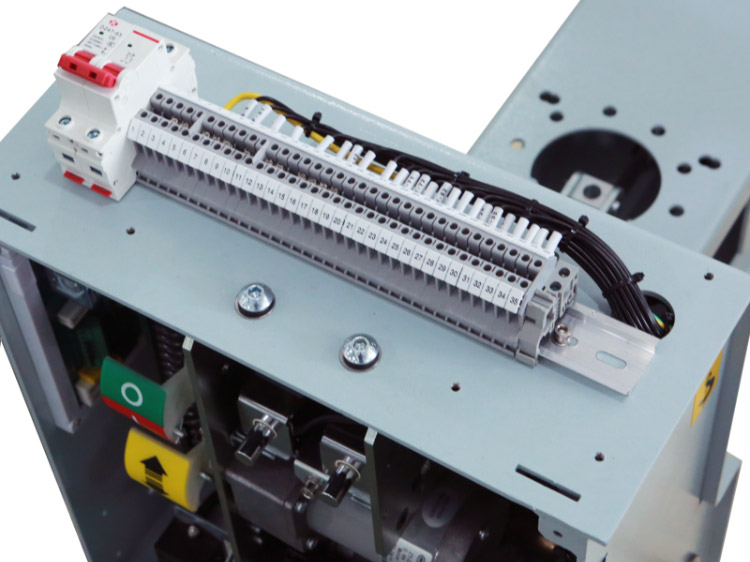

In demanding industrial environments and critical power distribution nodes, the ability to safely interrupt extreme fault currents is non-negotiable. The ZN63(VS1)-12 Indoor High Voltage Side-Mounted Vacuum Circuit Breaker delivers exceptional short-circuit protection with a rated short-circuit making current of up to 100kA and corresponding breaking capacity, placing it among the highest-performance 12kV breakers available .
The breaker's exceptional interrupting capability is enabled by its advanced vacuum interrupter technology. Each phase utilizes a high-performance vacuum interrupter with copper-chromium contacts designed to withstand the intense thermal and mechanical stresses of high-current fault interruption . The vacuum environment provides superior dielectric recovery after current zero, ensuring reliable interruption even for the most demanding fault conditions. This capability is validated by the E2 class electrical endurance, confirming the breaker's ability to perform multiple high-current interruptions without performance degradation .
The ZN63(VS1)-12's short-circuit performance is further enhanced by its optimized operating mechanism. The spring mechanism delivers consistent opening speeds of 0.9-1.2m/s and closing speeds of 0.5-0.8m/s, ensuring rapid contact separation and arc extinction . The mechanism's closing time of 0.1s and opening time ≤0.05s minimize fault duration, reducing thermal and mechanical stress on downstream equipment. The three-phase opening/closing asynchronism ≤2ms ensures balanced operation essential for system stability.
The breaker's high interrupting capacity is complemented by robust thermal stability. It withstands 4-second short-time withstand currents equivalent to its breaking ratings, ensuring it can carry fault currents for coordination purposes without damage . The rated short-circuit breaking current interrupting times of 50 operations demonstrates the breaker's durability in applications where faults may occur repeatedly, such as in networks with challenging environmental conditions or aging infrastructure .
Therefore, for applications demanding the highest levels of short-circuit protection—from heavy industrial plants to critical utility substations—the ZN63(VS1)-12 delivers proven, reliable performance. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. To discuss your specific fault current protection requirements, contact our technical specialists.
