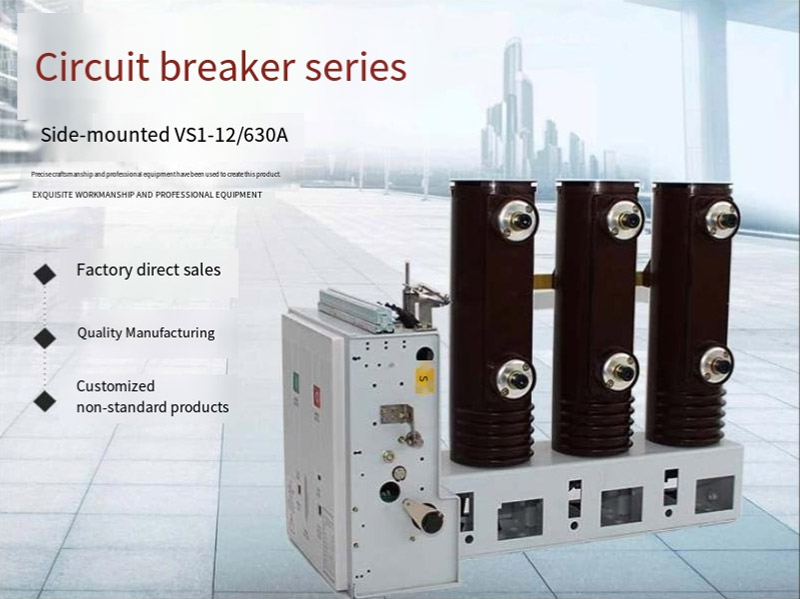

Modern industrial facilities and large commercial complexes demand distribution equipment capable of handling high continuous currents while maintaining efficiency and reliability. The ZN63(VS1)-12 Indoor High Voltage Side-Mounted Vacuum Circuit Breaker meets these demands with a comprehensive range of rated currents up to 4000A, making it suitable for the most demanding high-capacity applications .
The breaker's ability to carry high currents without excessive heating is achieved through optimized main circuit design. The fixed connection architecture eliminates the additional resistance inherent in moving contact systems, ensuring consistently low contact resistance throughout the service life . The use of high-conductivity copper for busbars and connections, combined with precision assembly techniques, achieves main circuit resistance values as low as 50μΩ for 1250A ratings, minimizing I²R losses and thermal stress .
The vacuum interrupter itself is engineered for high continuous current carrying capacity. The copper-chromium contact material provides excellent conductivity while maintaining the mechanical strength and anti-welding properties required for reliable interruption . The interrupter's internal design optimizes current distribution across the contact surfaces, preventing localized hotspots that could lead to premature wear or failure. This design is validated by the E2 class electrical endurance, confirming the interrupter's ability to maintain performance under repeated high-current operations.
Thermal management is enhanced by the breaker's side-mounted configuration, which improves natural convection airflow around the poles and main connections. The fixed installation ensures consistent heat dissipation paths, eliminating the thermal cycling effects associated with draw-out designs . For the highest current ratings, optional forced cooling configurations can be specified to maintain operating temperatures within safe limits .
Therefore, for high-capacity applications such as main incoming feeders, large motor circuits, or power distribution in heavy industries, the ZN63(VS1)-12 offers reliable high-current carrying capability with proven thermal performance. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. To discuss your high-current application requirements, contact our engineering team.
(Article content references network resources.)
