ZN63 VS1 12 The Evolution of Spring Mechanism Reliability

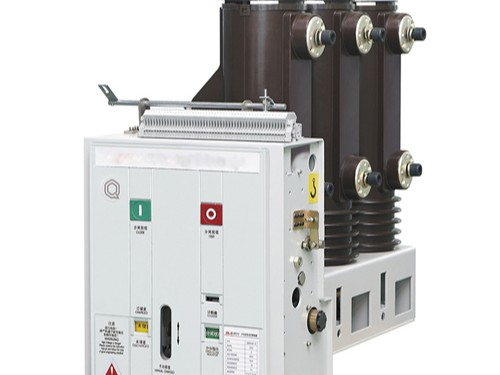

The ZN63(VS1)-12 Indoor High Voltage Side-Mounted Vacuum Circuit Breaker is part of the globally recognized VS1 series, a platform that has defined reliability standards for fixed-type vacuum circuit breakers over decades of service. Its spring operating mechanism embodies the cumulative engineering refinements that make this series a trusted choice for utilities and industrial users worldwide .

The spring mechanism in the ZN63(VS1)-12 represents a mature, proven design optimized for 20,000 mechanical operations. Energy is stored in high-grade alloy springs through a manual or motorized charging system, then released through a precisely engineered trip-free mechanism to achieve consistent contact motion . The mechanism's design ensures opening and closing speeds remain within specified ranges regardless of operator input speed, guaranteeing consistent fault interruption performance.

Key engineering refinements distinguish this VS1 mechanism from earlier designs. The use of advanced bearing materials reduces friction and wear, extending maintenance intervals. The cam-and-linkage system is optimized to match the vacuum interrupter's travel characteristics, minimizing contact bounce and maximizing arc extinction efficiency . The mechanism's output curves are precisely matched to the interrupter's requirements, ensuring optimal contact loading and minimizing mechanical stress on components .

Operational reliability is supported by comprehensive testing. Each mechanism undergoes 20000-operation mechanical endurance testing before design finalization, verifying performance under worst-case conditions . The rated short-circuit breaking current interrupting times of 50 operations confirms the mechanism's ability to maintain consistent timing and speed throughout the breaker's life. The contact bounce time ≤2ms minimizes pre-arcing and contact wear, extending electrical life .

Therefore, the ZN63(VS1)-12's spring mechanism represents the culmination of decades of VS1 platform evolution, delivering field-proven reliability for the most demanding applications. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For detailed information on the VS1 series reliability record and application suitability, contact our technical experts.

(Article content references network resources.)
