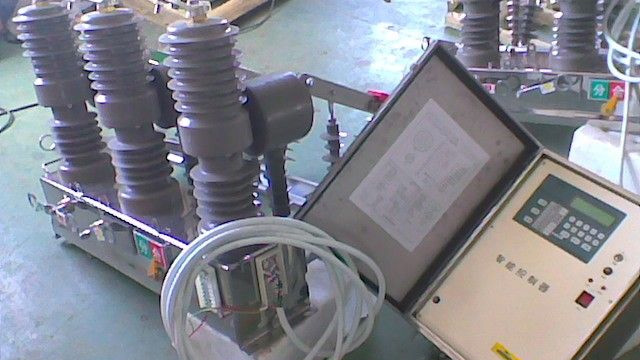

The operating mechanism is the heart of any circuit breaker, determining its reliability, speed, and maintenance requirements. The ZW32-40.5kV Outdoor Pole Mounted Vacuum Auto Recloser offers an advanced permanent magnet actuator that represents a significant leap in mechanism technology, delivering unparalleled performance for demanding distribution applications .
Unlike traditional spring mechanisms with numerous moving parts prone to wear, the permanent magnet actuator operates with a single moving part. It uses magnetic force to hold the moving contacts in position and an electromagnetic coil to initiate movement, drastically reducing mechanical complexity. This design achieves an impressive mechanical life of over 30,000 operations, far exceeding conventional mechanisms . For added reliability, the system includes a spring backup mechanism, ensuring guaranteed opening and closing even in complete power loss scenarios .
The actuator's performance characteristics are optimized for 40.5kV applications. It delivers consistent closing and opening speeds, with a closing time of 30-60ms and an opening time of 20-40ms, ensuring rapid fault clearance . The three-pole closing/opening asynchronism is ≤2ms, providing balanced operation essential for system stability. The mechanism's bounce time is ≤2ms, minimizing contact wear and extending electrical life .
The maintenance benefits are equally compelling. With its simplified design and reduced wear points, the permanent magnet actuator is truly maintenance-free for the lifespan of the device under normal operating conditions . This eliminates the need for periodic lubrication, adjustment, or part replacement, dramatically reducing total cost of ownership for utilities and industrial users. The mechanism's robust construction also ensures consistent performance across a wide temperature range, from -40°C to +60°C .
Therefore, for applications demanding maximum reliability, reduced maintenance, and long service life, the ZW32-40.5 with permanent magnet actuator is the optimal choice. Its advanced design provides the operational consistency and durability required for critical infrastructure and remote locations where maintenance access is limited. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. To explore how this advanced mechanism can benefit your specific application, contact our engineering specialists.
(Article content references network resources.)
