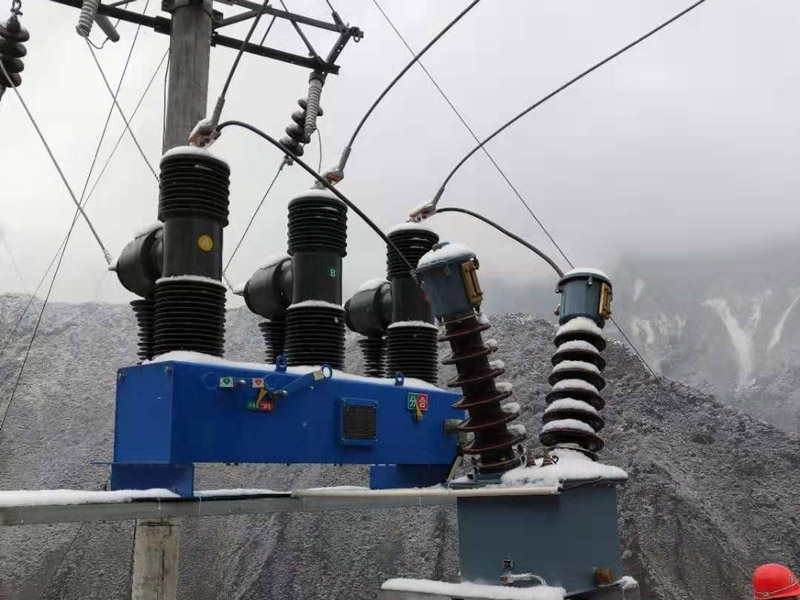

Outdoor high-voltage equipment operating in harsh environments faces relentless challenges: salt spray corrosion, UV radiation, wide temperature swings, and pollution. The ZW32-40.5kV Outdoor Pole Mounted Vacuum Auto Recloser addresses these challenges through its innovative solid insulated pole design, where the vacuum interrupter and all live parts are fully encapsulated in high-performance insulating materials .
The solid insulation system uses outdoor-grade epoxy resin combined with silicone rubber coating, creating a seamless barrier against environmental ingress . This fully encapsulated construction eliminates internal voids and prevents moisture absorption, which are primary causes of insulation failure in traditional designs. The silicone rubber outer layer provides exceptional hydrophobic properties, causing water to bead and roll off rather than forming conductive paths, significantly enhancing performance in high-humidity and fog conditions .
Environmental testing confirms the ZW32-40.5's ruggedness. It operates reliably across an extreme temperature range of -40°C to +60°C, making it suitable for both arctic winters and desert summers . With an IP65 protection rating for the tank and controller enclosure, it withstands dust, rain, and direct hose-directed water . The design has been validated for pollution level III environments, including coastal areas with salt spray and industrial zones with corrosive gases . For specialized applications, the solid insulation enables operation at altitudes up to 4500 meters, where reduced air density challenges conventional insulation .
The durability of this design translates directly into extended service life. The vacuum interrupter itself is rated for E2 class electrical endurance, capable of withstanding numerous short-circuit operations without performance degradation . The solid encapsulation protects the interrupter and connections from vibration and mechanical stress, ensuring consistent performance over decades. Independent testing confirms that the materials resist UV radiation, ozone, and weathering, the primary causes of organic insulation degradation .
Therefore, for projects in challenging environments—whether coastal, high-altitude, or heavily polluted—the ZW32-40.5 provides a proven, long-term solution. Its solid insulated pole design eliminates the reliability compromises inherent in traditional air-insulated or gas-insulated alternatives.
Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. To discuss your specific environmental requirements and how the ZW32-40.5 can meet them, contact our technical team.
(Article content references network resources.)
