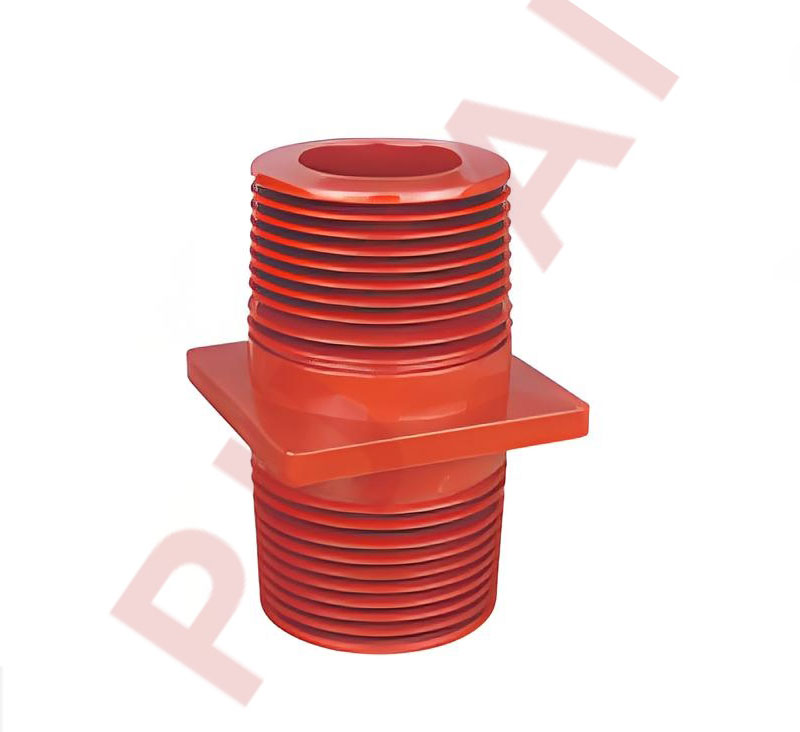

35KV Wall Bushing with Shielding (260×260×450)
  • Rated Voltage:35kV
  • Rated Current:3150A ~ 5000A
180mm Gas-insulated Switchgear Bushing
  • Rated Current:630A
  • Rated Voltage:12kV
  • Rated Short-time Withstand Current:20kA/4s
  • Rated Peak Withstand Current:50kA
198mm Gas-insulated Switchgear Bushing
  • Rated Current:630A
  • Rated Voltage:12kV
  • Rated Short-time Withstand Current:25kA/4s
  • Rated Peak Withstand Current:63kA
202mm Gas-insulated Switchgear Bushing 630A
  • Rated Current:630A
  • Rated Voltage:12kV
202mm Gas-insulated Switchgear Bushing 630A (Southern Power Grid Standard)
  • Rated Current:630A
  • Rated Voltage:12kV
202mm Gas-insulated Switchgear Bushing 1250A
  • Rated Current:1250A
  • Rated Voltage:12kV
235mm High-load Gas-insulated Switchgear Bushing
  • Rated Current:1600A
  • Rated Voltage:12kV
285mm Dual-channel Gas-insulated Switchgear Bushing 2500A
  • Rated Current:2500A
  • Rated Voltage:12kV
12kV Center Distance 205mm Embedded Pole
  • Rated Voltage:12kV
  • Rated Current:630A、1250A
  • Rated frequency:50Hz
  • Rated short-circuit breaking current:25KA, 31.5KA
12kV Center Distance 275mm Embedded Pole
  • Rated Voltage:12kV
  • Rated Current:630A, 1250A, 1600A
  • Rated frequency:50Hz
  • Rated short-circuit breaking current:25KA, 31.5KA
12kV Center Distance 310mm High Current Pole (Old Design)
  • Rated Voltage:12kV
  • Rated Current:2500A, 3150A, 4000A
  • Rated frequency:50Hz
  • Rated short-circuit breaking current:31.5KA, 40KA
12kV Center Distance 310mm High Current Pole (New Design)
  • Rated Voltage:12kV
  • Rated Current:2500A
Characteristics of Insulation Component
Rated Voltage
2kV~40.5kV
Material
Vacuum Cast Epoxy Resin
Power Frequency Withstand Voltage
42kV/1min (12kV class)
Mechanical Strength
≥800MPa
Lightning Impulse Withstand Voltage
75kV (Apex)
Certification
IEC 62271-200, UL 508
Materials
6 global material development partners
Detection
100% internal dielectric and thermal performance testing
Compliance
Designed to meet IEC/ANSI standards
Traceability
Complete batch traceability and leading technical support
Why Choose Us
Strong weathering resistance
adapt to extreme environments such as coastal, high pollution, high temperature and high humidity.
High reliability
Reduces the risk of grid failures and reduces maintenance costs.
International Standard Adaptation
Meet the requirements of power equipment in the European, Middle East and Southeast Asian markets.
FAQ
What types of insulation components do you offer?
We offer epoxy resin insulators, embedded poles, bushings, and insulation parts designed for medium and high voltage switchgear and transformers.
What voltage range do your insulation components support?
Our insulation products are suitable for systems rated from 3.6kV up to 40.5kV, depending on the application.
Our insulation products are suitable for systems rated from 3.6kV up to 40.5kV, depending on the application.
Yes, all our insulation components meet IEC 60243 and IEC 62271 standards for electrical strength and mechanical integrity.
Can I request customized insulator designs?
Yes, we can customize dimensions, mounting options, and material formulations based on your technical drawings or specifications.
