24kV Top Outlet Embedded Pole
  • Rated Voltage:24kV
  • Rated Current:1250A

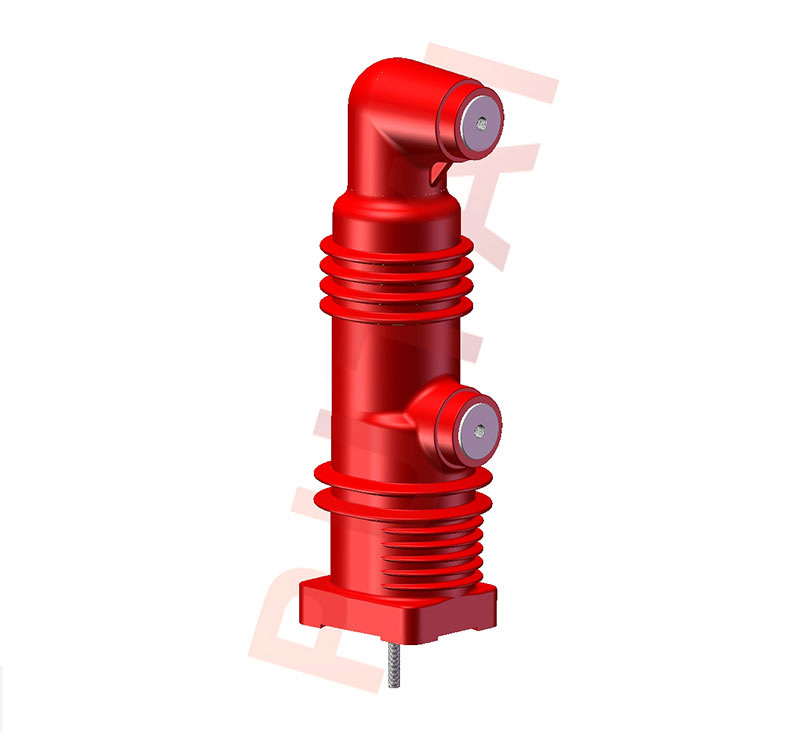

24KV Center Distance 310mm Standard Fixed-Type Solid Sealed Pole Terminal
  • Rated Voltage:24kV
  • Rated Current:630A, 1250A, 1600A

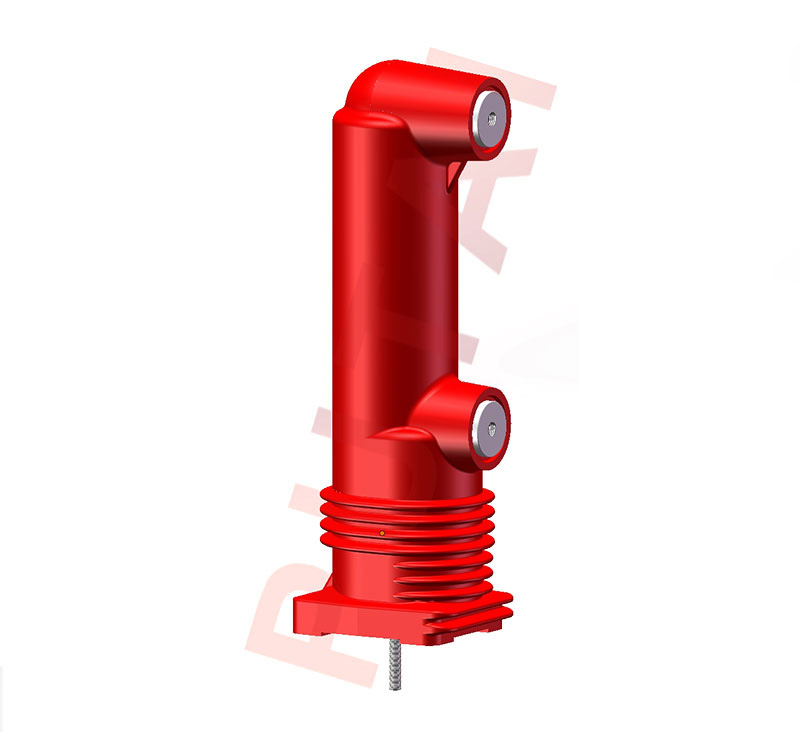

24KV Center Distance 310mm Fixed-Type Solid-Sealed Pole Termina
  • Rated Voltage:24kV
  • Rated Current:630A, 1250A

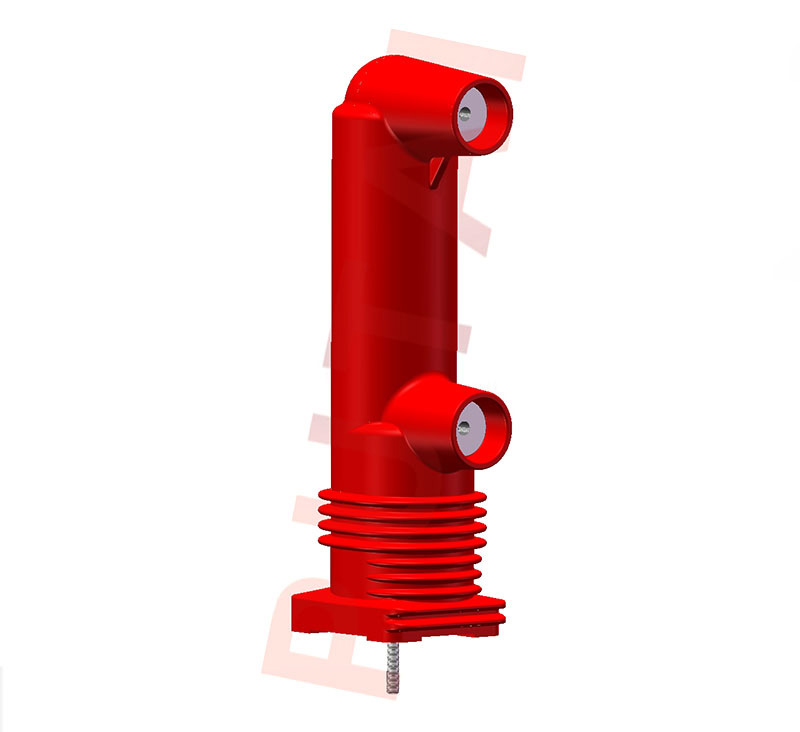

24KV Center Distance 310mm Draw-Out Type Solid-Sealed Pole Terminal
  • Rated Voltage:24kV
  • Rated Current:630A, 1250A, 1600A
40.5kV Top Outlet Embedded Pole
  • Rated Voltage:40.5KV
  • Rated Current:2000A, 2500A

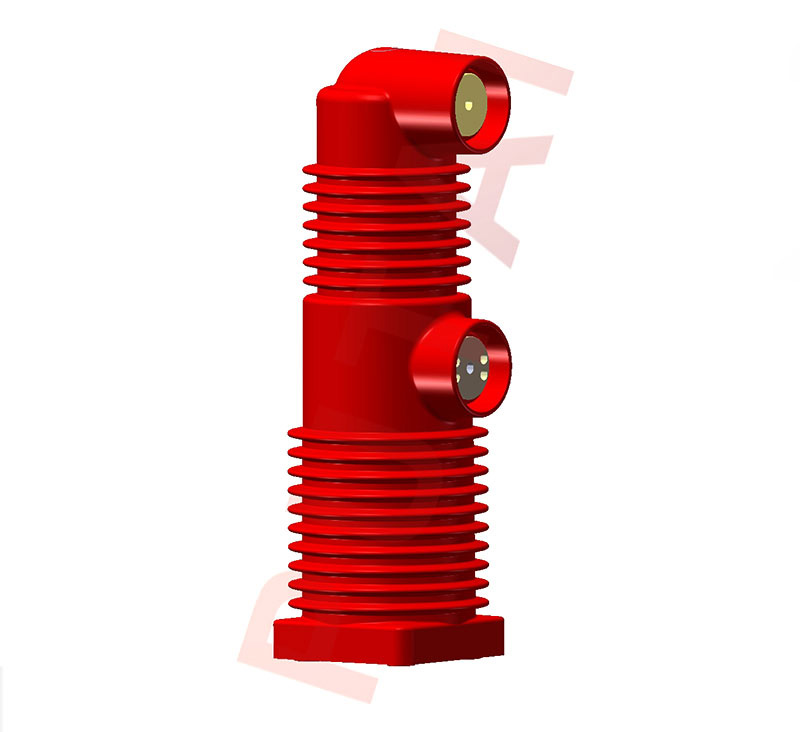

40.5kV Center Distance 328mm Embedded Pole
  • Rated Voltage:40.5KV
  • Rated Current:2000A, 2500A

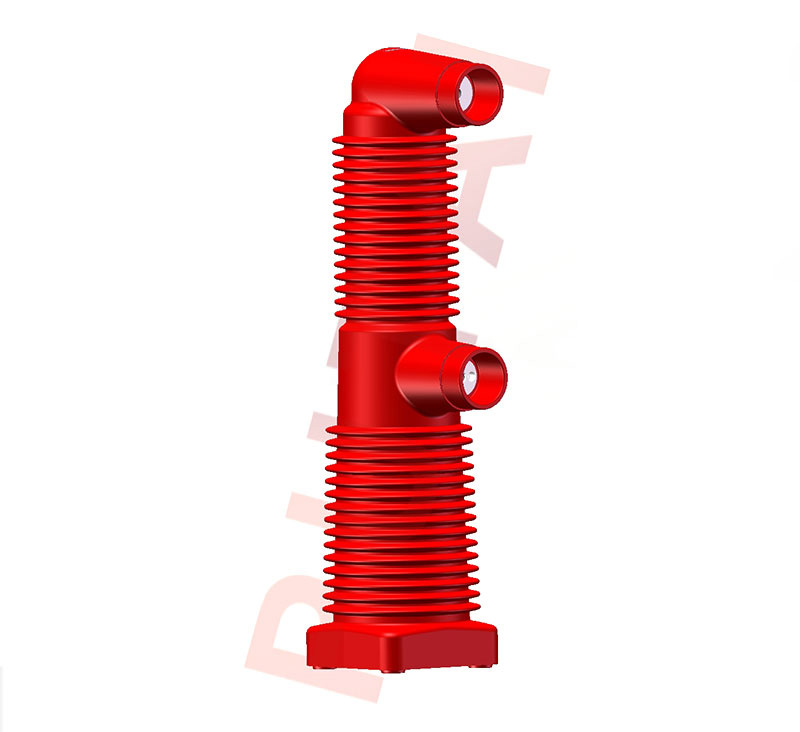

40.5KV Center Distance 400mm Conventional Pole
  • Rated Voltage:40.5KV
  • Rated Current:1250A, 1600A, 2000A, 2500A

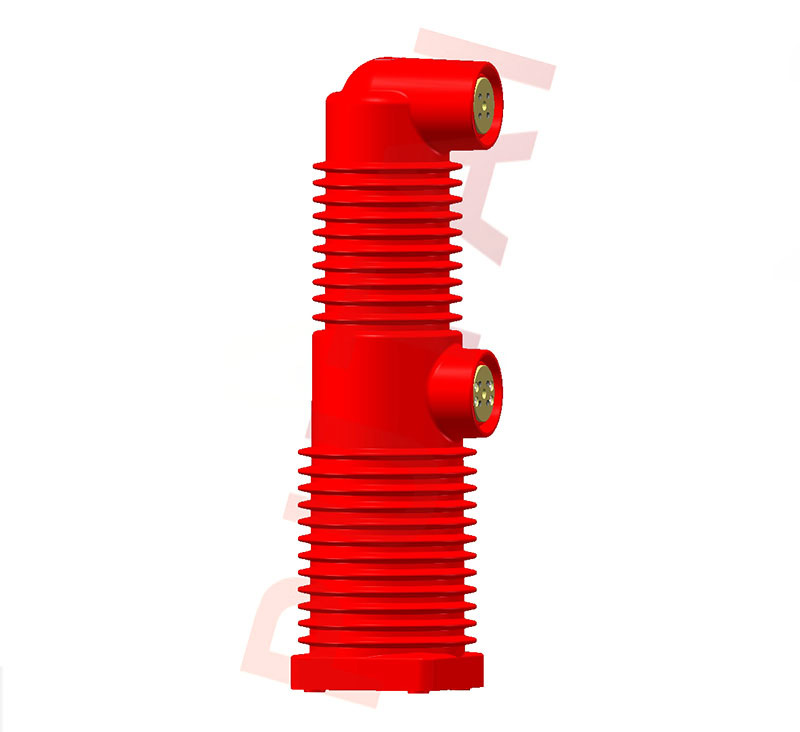

40.5KV Center Distance 400mm Standard Pole
  • Rated Voltage:40.5KV
  • Rated Current:1250A, 1600A, 2000A, 2500A

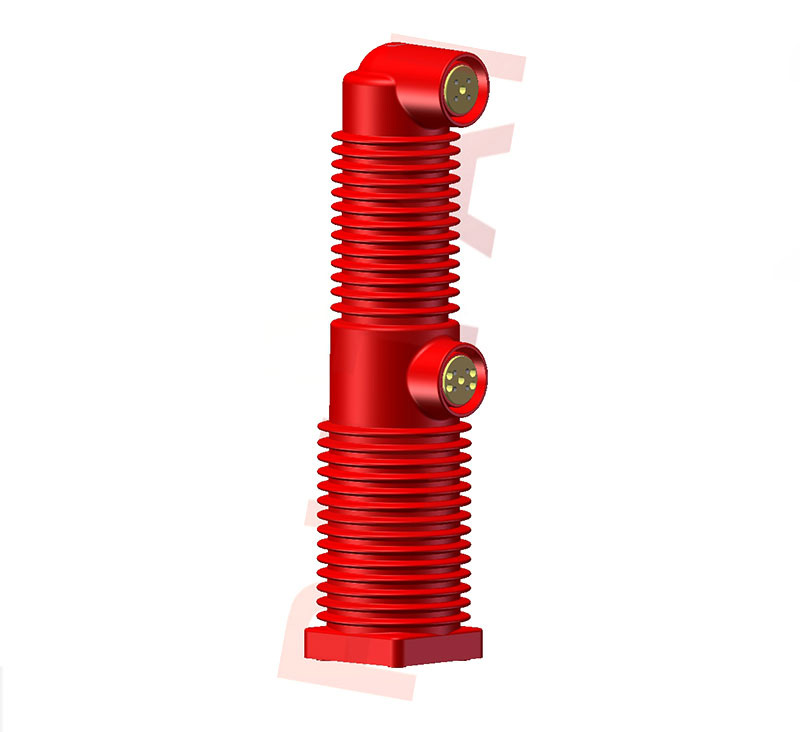

40.5KV Center Distance 472mm High-Altitude Pole
  • Rated Voltage:40.5KV
  • Rated Current:1250A, 1600A, 2000A, 2500A
CG5-12KV Series Sensors
  • Rated Voltage:12kV
  • Operating Current:630～1600A
  • Power Frequency Withstand Voltage:42kV
  • Lightning Impulse Withstand Voltage:85kV
CG5-24KV Series Sensors
  • Rated Voltage:24kV
  • Operating Current:630～2000A
  • Power Frequency Withstand Voltage:65kV
  • Lightning Impulse Withstand Voltage:125kV
CG5-35KV Series Sensors
  • Rated Voltage:35kV
  • Operating Current:2000～3150A
  • Power Frequency Withstand Voltage:95kV
  • Lightning Impulse Withstand Voltage:185KA
Characteristics of Insulation Component
Rated Voltage
2kV~40.5kV
Material
Vacuum Cast Epoxy Resin
Power Frequency Withstand Voltage
42kV/1min (12kV class)
Mechanical Strength
≥800MPa
Lightning Impulse Withstand Voltage
75kV (Apex)
Certification
IEC 62271-200, UL 508
Materials
6 global material development partners
Detection
100% internal dielectric and thermal performance testing
Compliance
Designed to meet IEC/ANSI standards
Traceability
Complete batch traceability and leading technical support
Why Choose Us
Strong weathering resistance
adapt to extreme environments such as coastal, high pollution, high temperature and high humidity.
High reliability
Reduces the risk of grid failures and reduces maintenance costs.
International Standard Adaptation
Meet the requirements of power equipment in the European, Middle East and Southeast Asian markets.
FAQ
What types of insulation components do you offer?
We offer epoxy resin insulators, embedded poles, bushings, and insulation parts designed for medium and high voltage switchgear and transformers.
What voltage range do your insulation components support?
Our insulation products are suitable for systems rated from 3.6kV up to 40.5kV, depending on the application.
Our insulation products are suitable for systems rated from 3.6kV up to 40.5kV, depending on the application.
Yes, all our insulation components meet IEC 60243 and IEC 62271 standards for electrical strength and mechanical integrity.
Can I request customized insulator designs?
Yes, we can customize dimensions, mounting options, and material formulations based on your technical drawings or specifications.
