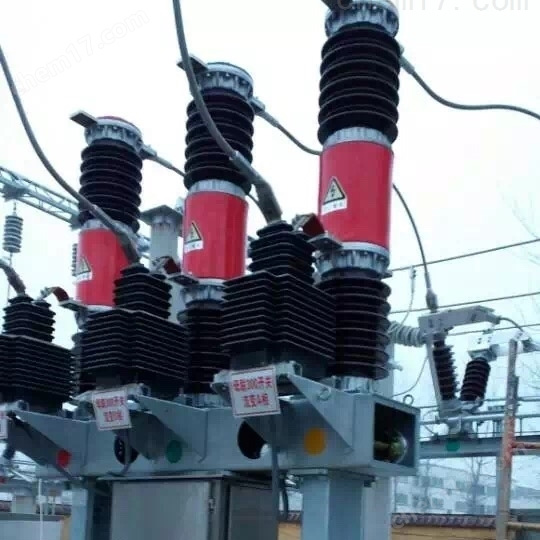

Proper gas management is essential for maintaining the reliability and performance of SF6 circuit breakers. The LW38-40.5kV Outdoor SF6 Circuit Breaker incorporates comprehensive gas monitoring and pressure control features that simplify maintenance while ensuring continuous protection. Understanding these systems is critical for operators responsible for breaker upkeep over its service life.
The LW38 operates at a rated SF6 pressure of 0.45 MPa (gauge at 20°C) , with a three-tier pressure monitoring system that provides progressive warnings. At 0.42 MPa (alarm pressure) , the system alerts operators that replenishment is needed. At 0.4 MPa (lockout pressure) , the breaker's control system prevents operation, ensuring it only interrupts current when sufficient gas density exists for reliable arc extinction . This graduated approach prevents unexpected lockout while maintaining safety.
SF6 gas quality must be maintained to preserve dielectric and arc-quenching properties. The breaker is designed with a leakage rate ≤1%/year, minimizing replenishment frequency and environmental impact . For new installations, the SF6 moisture content acceptance value is ≤150ppm (v/v) , with operation value ≤300ppm (v/v) . Regular moisture monitoring is recommended, as excessive humidity can reduce dielectric strength and lead to internal condensation, particularly in regions with wide temperature variations.
Recommended maintenance practices include:
1.Annual gas pressure verification: Record pressure readings at standardized temperatures (20°C) and compare to nameplate values
2.Leak detection: Use electronic leak detectors during routine inspections to identify potential leakage points
3.Moisture measurement: Perform dew point testing every 3-5 years or after any gas handling
4.Gas handling procedures: Use only clean, dry SF6 conforming to IEC 60376 standards, and follow proper evacuation and filling protocols
The breaker's mechanism life of 5000 operations ensures long-term reliability when properly maintained. The SF6 gas weight is approximately 5kg per unit, with the complete breaker weighing 800-1000kg depending on CT configuration . For major overhauls or end-of-life disposal, follow local regulations for SF6 recovery and recycling to minimize environmental impact.
Therefore, proactive SF6 gas management extends breaker life and ensures reliable operation. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For detailed maintenance procedures or SF6 handling training, contact our service team.
(Article content references network resources.)
